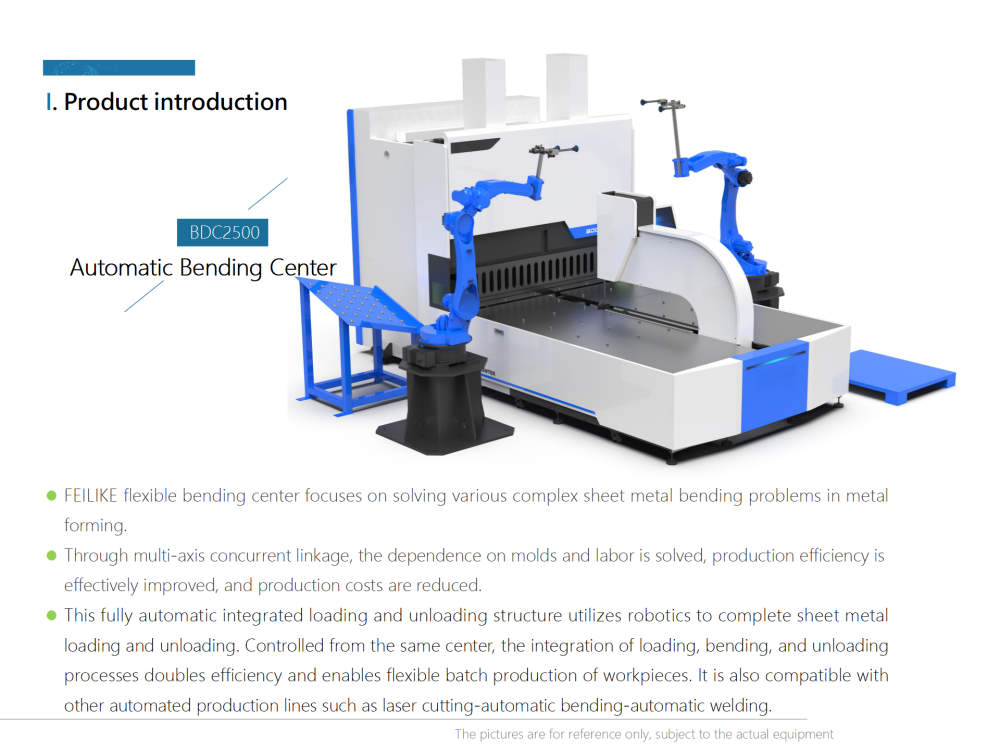

Automatic Sheet Metal Bending Machine Cnc Panel Bender Flexible Bending Center With Fully Automatic Truss Device

1.Through multi-axis concurrent linkage, the dependence on molds and labor is solved, production efficiency is effectively improved, and production costs are reduced.

2.The fully automatic truss-type loading and unloading structure usesatruss mechanicdl arm to fully automate the loading and unloading of sheet metal, it receives commands from a cental control hub to execute anintegrated bending process from loading, bending,to unloading, resulting in increased efficiency,ease of workpieces and can be integrated into automated production lines such as laser cutting-automatic bending-au-tomatic welding.

3.Bending system：Professional CNC system, graphic visualization programming, support two-bit drawing process programming; multi-axis concurrent linkage intelligent CNC system, using EtherCAT bus protocol, can support up to 64 axes.

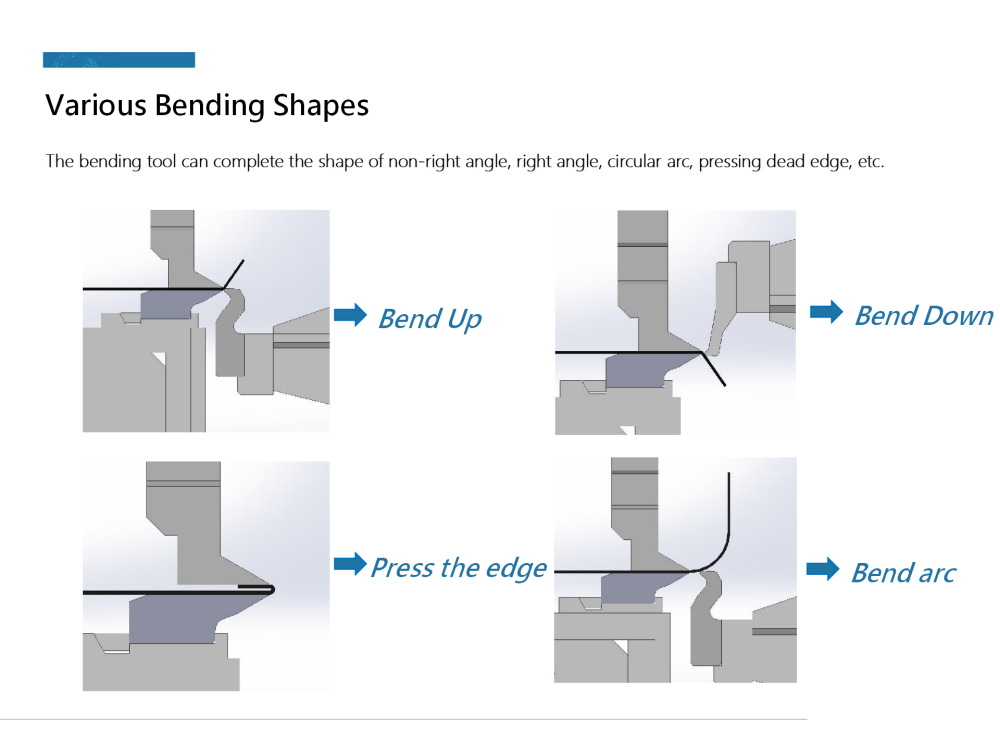

4.Bending knife:The life of the bending knife can reach one million times (thin sheet).High-strength 42Crmo material, after more than ten processing processes such as overall forging, quenching and tempering, high-frequency quenching, etc., makes the bending die more durable and more wear-resistant.

5.High Efficiency and Precision:The BDC series is a new generation of fully automatic multilateral bending center . The product not only saves a lot of manpower, but the bending speed is 3 times that of the CNC bending machine, reaching 0.5s/time.

6.Higher Bending Accuracy:The machine body independently developed and designed has undergone accurate finite element force analysis, and adopts a stable triangular interconnection design. The key components are processed with 80mm steel plates to ensure stability under high tonnage impact force.
